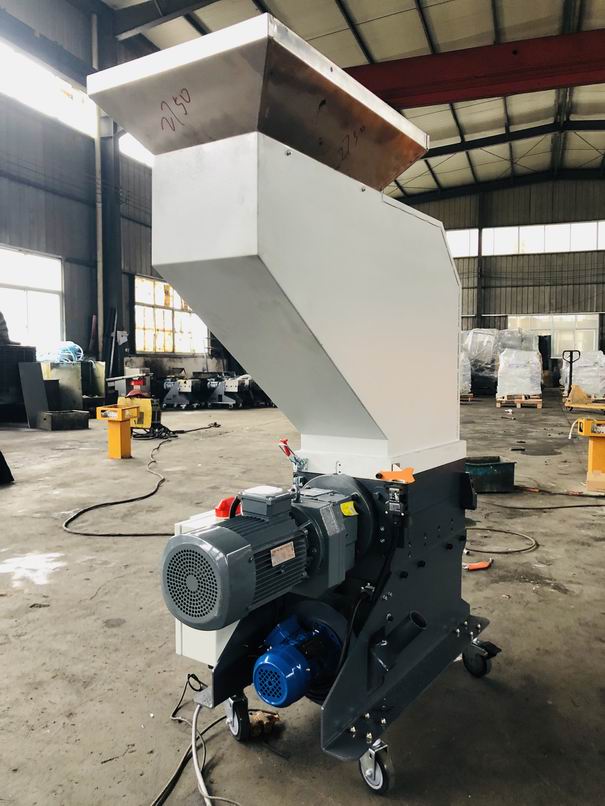

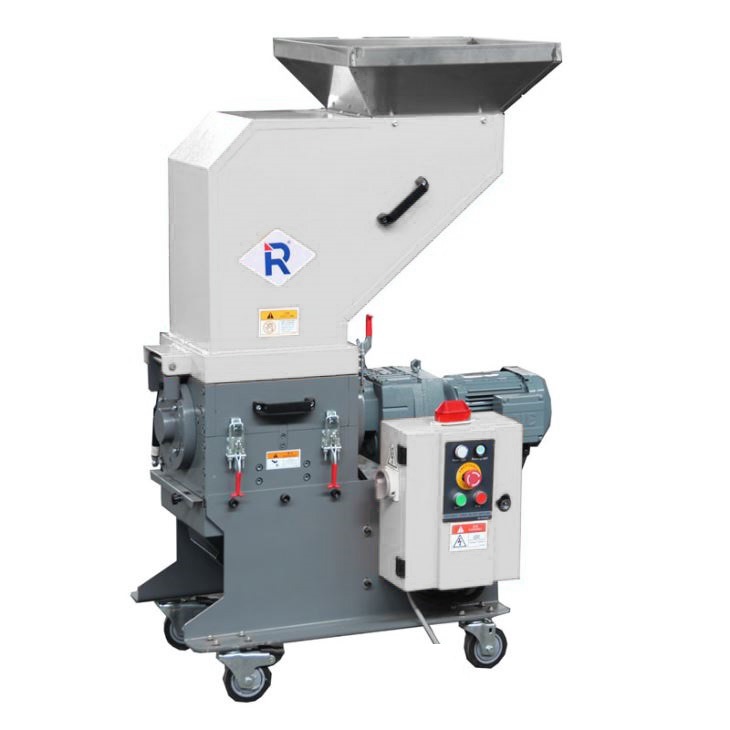

The slow-speed screenless granulators of RG-27R series are used together with plastics molding machine. They are suitable for instant recycling or granulating hard and thick materials,and more used to granulate the hard shorts, such as PC, PBT, nylon, POM and so on. Unique cutting blades design ensures well - proportioned granules and minimal amount of dusts. With “Standard” attractive appearance and compact size, they feature low rotating speed, low abrasion and super soundproof.

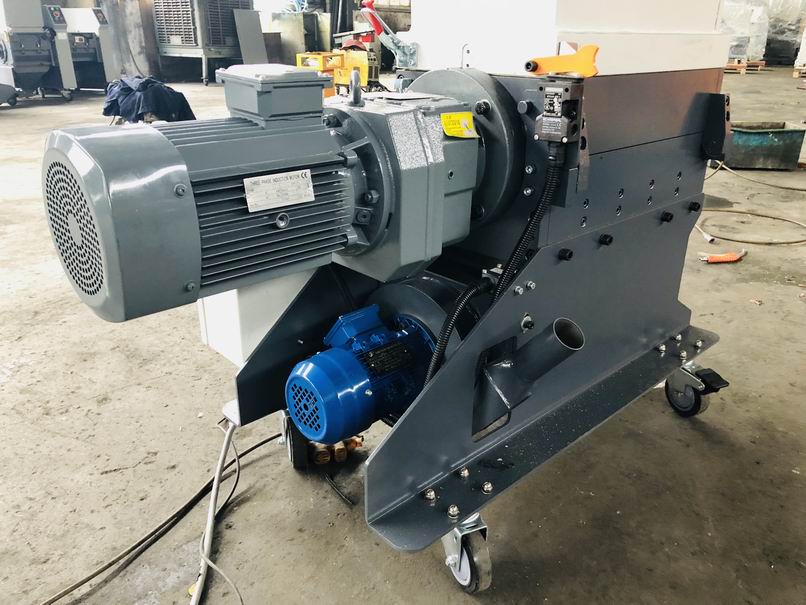

> Excellent gear motor features Low-speed rotation, high torque, even granule with little dust.
> Driven directly by speed reducer motor, high transmission efficiency so as to save power.

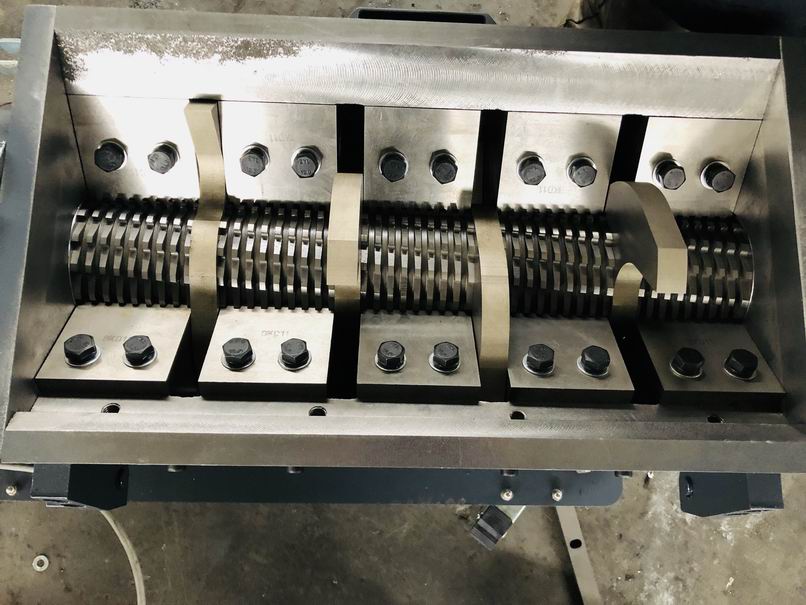

> Screenless design and integral design of teeth cutters and staggered blades makes roughly grinding and fine grinding simultaneously to mix with new materials.
> Blower automatic conveying together with instant reclaiming system so as to reduce man power and pollution on raw material.

> Overload protection on motor and other safety protection devices.
> Unique transmission design makes it running stably with low noise level.
> European design with compact structure, room-saving and easy cleanout.
> Equipped with casters so as to move easily.





Note：
1) "•"is standard allocation,"Ο " is selection purchase.
2) The machine voltage specification is 3Ø,380V,50Hz.
The voltage can be changed as you require.

Name		RHONG Slow Speed Screenless Granulator
Model		RG-2720R	RG-2730R	RG-2740R	RG-2750R
Power	kw	0.75	1.5	2.2	2.2
Rotor Speed	rpm	38	38	38	38
Rotating Claw Blades	pcs	1	2	3	4
Rotating Teeth Blades	pcs	2	3	4	5
Fixed Blades	pcs	5	7	9	11
Cutting Room Size	mm	275x200	275x300	275x415	275x525
Output	kg/h	8~10	10~15	15~25	25~40
Noise	dB(A)	60~75	60~75	60~75	60~75
Blower Conveying
Cyclone for fast recycling
Proportional Valve
Manual Box
Weight	kg	280	350	400	450
Dimensions:
L	mm	860	970	1120	1230
W	mm	615	615	615	615
H	mm	1395	1395	1495	1495

Please excuse for not note if some specifications of products are changed!

Note：
1）"" means standard configuration, "" means optional accessories.

2) The maximum output capacity depends on material quality and specific gravity.

3) The actual noise is based on material features and hardness.
4）The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
